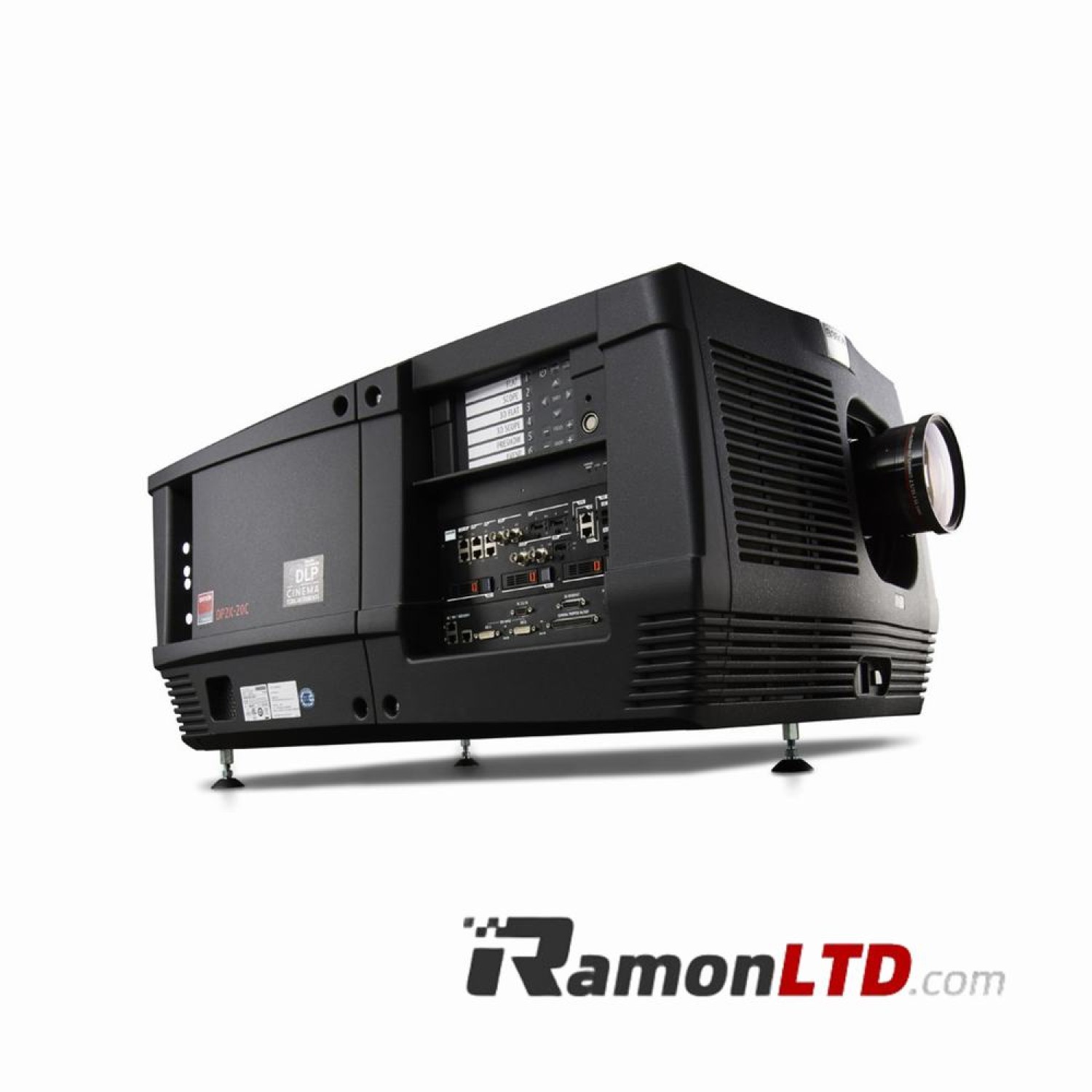

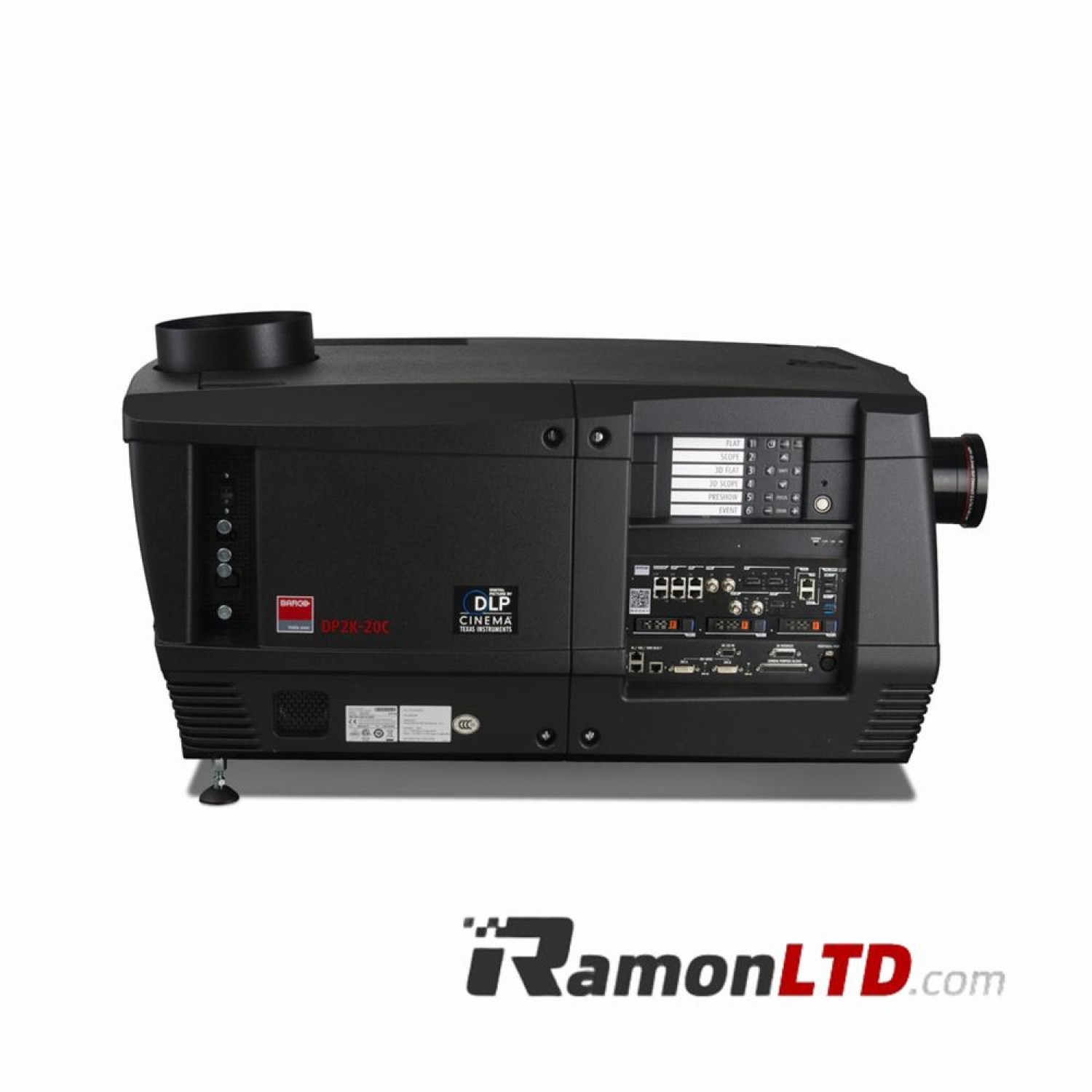

Barco DP2K-15C

Compact DLP Barco Alchemy Cinema projector (14,500 lumens) Integrated, DCI-compliant projector

The Barco Alchemy DP2K-15C is a compact and fully integrated digital cinema projector for mid-size theaters based on Texas Instruments’ 0.98” DLP Cinema® chip. It ensures a first-class movie experience with consistent picture brightness, rich contrast and vibrant colors

This is a used / pre-loved item, we do our best to uphold the quality of all our used equipment。including Touch screen monitor and lens.

Low cost of ownership

Geared with the integrated Barco Alchemy technology that drives operational and maintenance costs down, the DP2K-15C offers superior image processing, DCI quality images and ultimate reliability at a low TCO.

Easy maintenance and operation

The DP2K-15C comes with the ‘Barco Web Commander’ screen management system featuring an intuitive user interface. The projector detects potential operational errors and warns users in case of mishaps. It also has a fully modular architecture for simple serviceability and higher uptime.

The DP2K-15C projector can be ordered without the Barco Alchemy module.

Specifications

DIGITAL MICROMIRROR DEVICE™

3 x 0.98” DC2K dark metal devices

NATIVE RESOLUTION

2,048 x 1,080 pixels

HOUSING

Hermetically sealed DMDs and optical assembly

LAMP

1.2kW – 3kW

LIGHT OUTPUT

14,500 lumens

SCREEN SIZE

Up to 15m / 49ft wide (screen gain 1.4 @ 14 ftl)

CONTRAST RATIO

2,000:1

PRIME LENSES

1.2 – 1.8
1.4 – 2.05
1.6 – 2.5
1.95 – 3.2
2.4 – 3.9

CONTROL I/O

3x Ethernet
8x GPIO (DB 25)
3D interface
USB RS-232 interface (DB9)

INTEGRATED CINEMA MEDIA PROCESSOR

DCI 4K 2D up to 60fps
DCI 4K 3D (24 or 30 fps per eye)
DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)
JPEG 2000 bit-rates up to 625Mbps
Dual-channel color-correction
MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
2x HDMI2.0a (up to 4K 2D 60fps)
2x 3G-SDI inputs
16x AES/EBU audio channels (2x RJ45)
8x GPI, 8x GPO (4x RJ45)
2x Gbe for content connectivity & ingest
2x front-accessible USB 3.0 for fast ingest
2x front-accessible USB 2.0
Video watermarking: Civolution NexGuard
Audio watermarking: Civolution
Closed captioning devices: Support for SMPTE 430-10

INTEGRATED STORAGE

1.9TB effective storage (RAID-5) / 3x 1TB Hot-swappable 2.5″ hard-drives
3.9TB effective storage (RAID-5) / 3x 2TB Hot-swappable 2.5″ hard-drives

BARCO WEB COMMANDER

Projector Dashboard
Projector Control Board
Show Player/Editor/Scheduler
Automation, 3D, Ingest
Dynamic DCP playlists & intermission
TMS integration
Smart Projector Status
Via HTML5 web-browsers including iOS & Android tablets
Dual projector 3D: passive and active
Auro 11.1 decoding

BARCO COMMUNICATOR

Projector installation & configuration
Projector update & maintenance

PROJECTOR DIAGNOSTICS

via Integrated Media Server
via Communicator control software
via SNMP agent

POWER REQUIREMENTS

220V

DIMENSIONS

558(H) x 694(W) x 1034(D) mm
22.0(H) x 27.3(W) x 40.7(D) inch
NB.: min. 5 cm of air inlet spacing required at the bottom of projector

WEIGHT

102kg (225lbs)

AMBIENT TEMPERATURE

35°C / 95°F Max.

EXHAUST AIRFLOW

240 – 280 cfm (6,8 – 8 m³/min)

SAFETY REQUIREMENTS

Class 1 risk group 3

OPTIONS

Barco CineMate App (iOS & Android) – free
3D add-ons
Touch screen monitor, inc. Barco Commander & Communicator
Pedestal
CineCare Web
Auro 11.1 license
Barco Escape license
Live 3D***
** In testing
*** Software roadmap



Barco DP2K-15C

  • Brand: Barco
  • Product Code: Barco DP2K-15C
  • Availability: In Stock

  • $15,000.00

  • Ex Tax: $15,000.00

Tags: Barco DP2K-15C
